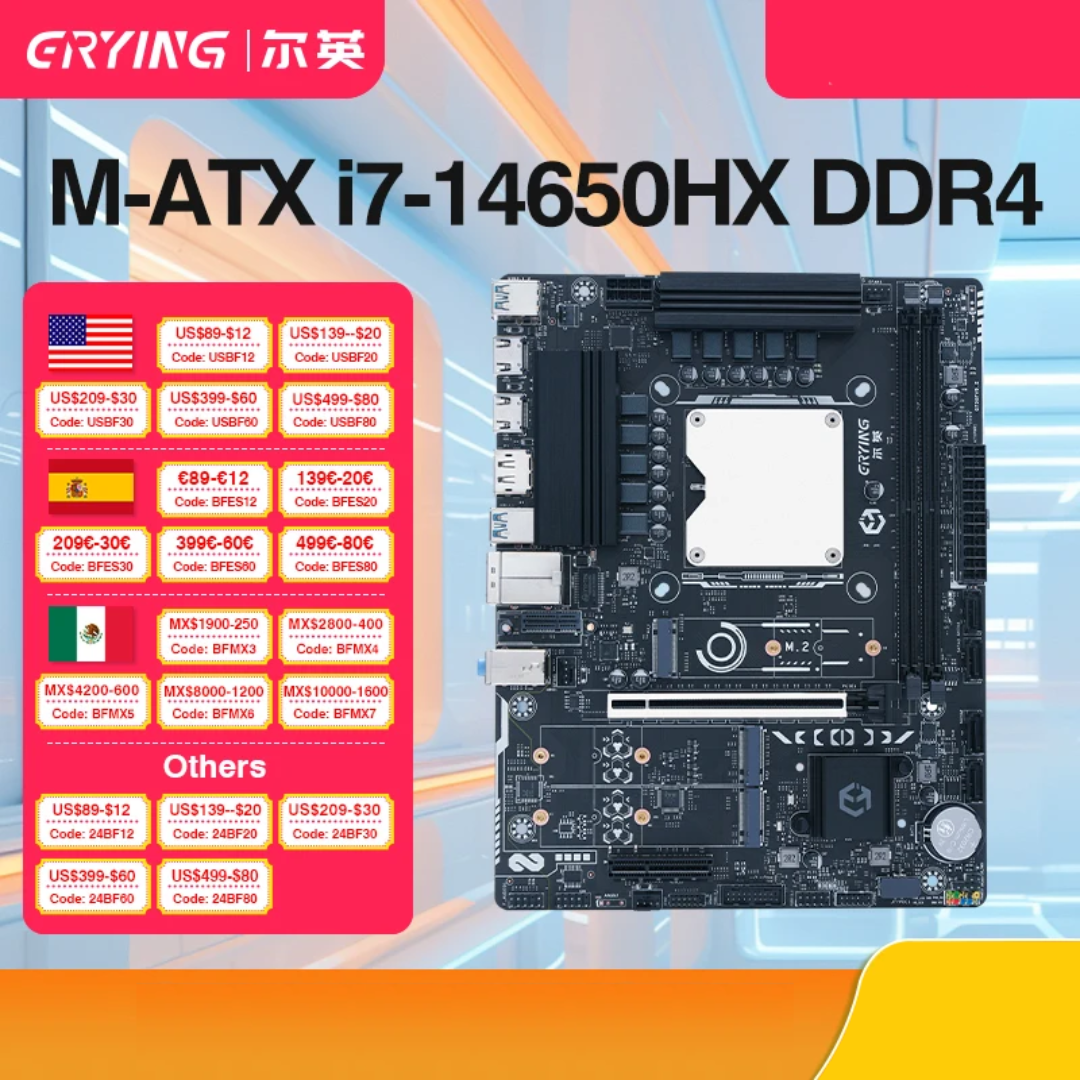

ERYING DIY Gaming PC Computer Motherboard CPU Combo Interposer Kit i7 14650HX 16C24T DDR4 RAM SSD NVME M2 Desktop Placa mae
PRICE
665.10 USD
14 SOLD
Share
Product Information
Specifications
| Specification | Details |
|---|---|
| RAID Supported | no |
| Processor Compatibility | Intel Core i7 |
| Usage Scenario | Gaming, Audio & Video, Office, DESIGN, Video Production, HPC |
| Special Function | none |
| Onboard Connectors & Header | 24-pin Main Power Connector, CPU Fan Connector(s), AAFP Connector, SPI TPM Header, Chassis(SYS) Fan Connector(s), USB 3.0 Connector, 8-pin +12V Power Connector, Others Connectors & Header, USB 2.0 Connector, COM Port Header, System Panel(s) (Chassis intrusion header is inbuilt) |
| Back I/O Ports | 1x RJ45, WIFI, 3 x Audio Jacks, 4x USB 3.2/3.1 Gen 1, Displayport, HDMI 2.0 |
| Support USB Type | USB 2.0, USB 3.0, USB 3.2 Gen1 |
| Max LAN Speed | 2500Mbps |
| Onboard LAN | 1x RJ45 |
| Audio Channels | 5.1 |
| Supports M.2 SSD | 2242, 2280, 2260 |
| Number of M.2 | 3 |
| Number of SATA Ports | 4 |
| Storage Interface Type | SATA 3, M.2 (NVMe) |
| Number of PCI | 0 |
| Number of PCIe x 1 | 1 |
| Number of PCIe x 4 | 1 |
| Number of PCIe x 8 | 0 |
| Number of PCIe x 16 | 1 |
| PCI-E Standards | PCI-E 4.0 |
| Number Of Memory Slots | 2 |
| Support Memory Type | DDR4 |
| Quality Certification | CE, ROHS, FCC |
| Memory Channel | Double |
| Package | Yes |
| Maximum RAM Capacity | 64 GB |
| Form Factor | Micro-ATX |
| Chipset Manufacturer | Intel |
| With CPU | Yes |
| Chipset | Intel Others |
| Application | Desktop |
| Socket Type | Onboard CPU |
| Brand Name | ERYING |
| Origin | Mainland China |
| Certification | RoHS, FCC, CE |
| Motherboard Size | 185*240mm |
| RAM | Dual Channel DDR4 3200/3600(OC+)MHz |
| GPU | UHD Graphics for 13th Gen Processors (Execution Units 16) |
| IHS Cover | VC IHS Cover |
